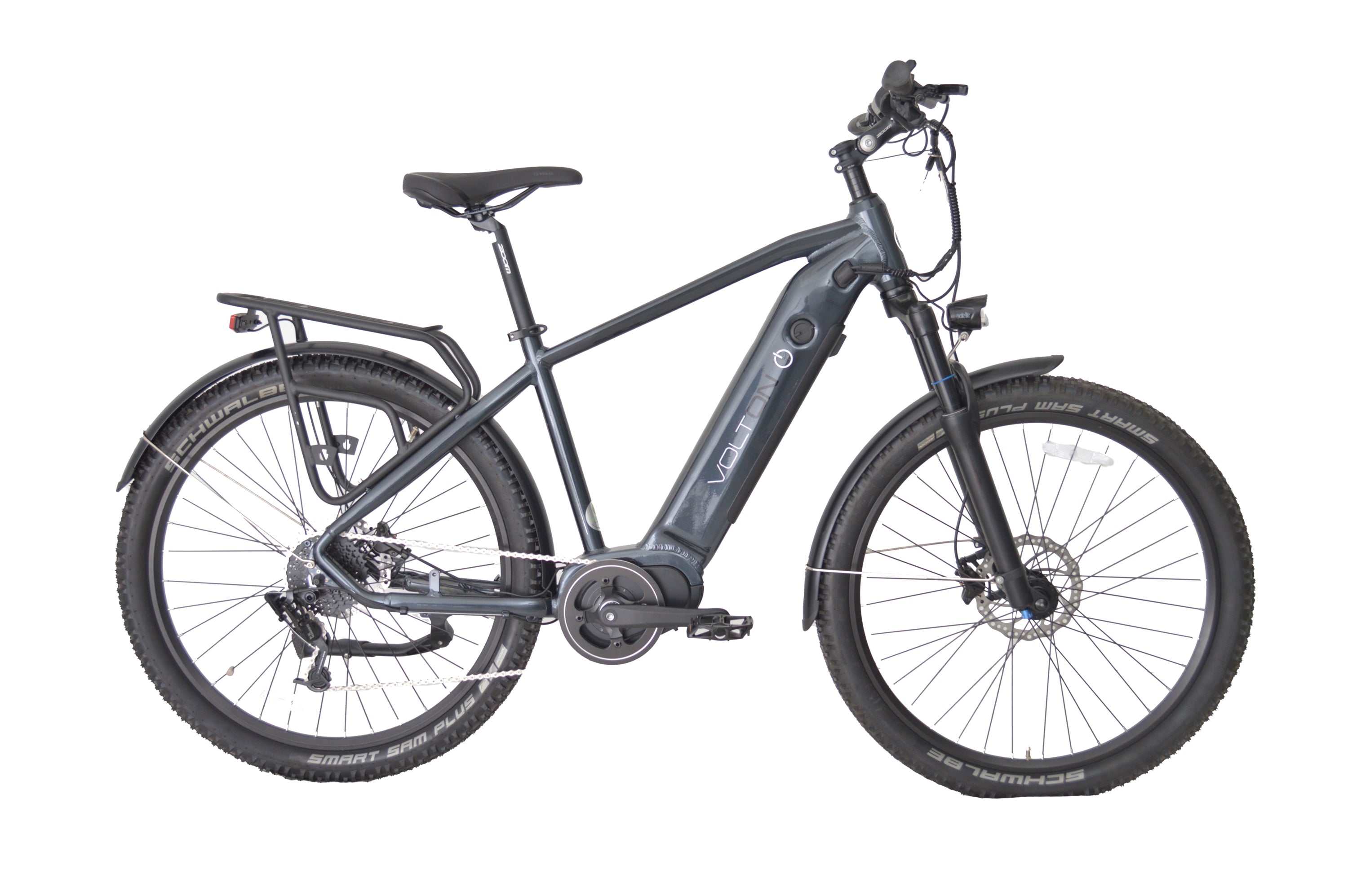

Action Mid Drive
On the Road and on The Trail with Torque Pedal Assist, Throttle, 150mm Air Suspension, Trail Rated Wheels, Thru Axles and Schwalbe Tires. The Action Mid Drive is Smooth, Quiet, and Capable. Quality at an Affordable Price.
Streamlined Design with Low Center of Gravity
A comfortable ride and superior handling comes from proper weight placement. Strong, light wheels, frame integrated motor and battery are mounted under the rider giving you comfort and unmatched handling at cruising speed and around turns.
Ultra- smooth torque sensing motor activation
The 5-level assist system detects your forces against the pedal and multiplies your power through the torque sensing mid drive motor. The torque assist is constantly reading – when that head wind hits, or a small climb gets in your way, the motor instantly reacts and puts out more power. There is no need to control a throttle, all electronics function at the push of a button. Riders can simply pedal, concentrate and enjoy the ride while sensing the motor performance.
Samsung battery cells rated for high power and long life
The Volton Action demands powerful advanced lithium-ion chemistry to go fast and power through any condition. With an on-board battery management system (BMS) for superior performance and long life, these lightweight, high capacity battery packs, BMS and chargers ensure a long lasting and reliable source of power.
Frame
Our frames are designed specifically for the increased power and performance of electric bicycling. No generic frameworks and no corners are cut to “make it work.” Attention is given to strength, responsiveness and aesthetics to offer a better ride and better ebike. 6160 aluminum alloy is used exclusively on Volton Bicycles.
Bright integrated LED head and tail light
Light up your path and let others know you are there so you can safely ride at night.
| Better Parts = Better Ride | On the Road and On the Trail Performance |
 |
 |
| Powerful Geared Motor | Battery Integrated Frame |
 |
 |
| Fun for the Family | Quality Electronic Power Guaranteed |
 |
 |
| COLOR | Black (with black rims), Graphite (with black rims), Volton Blue, White (with white rims) |
|---|---|
| MOTOR | Bafang MAX motor with torque sensing control |
| BATTERY | Samsung 48v14.5ah |

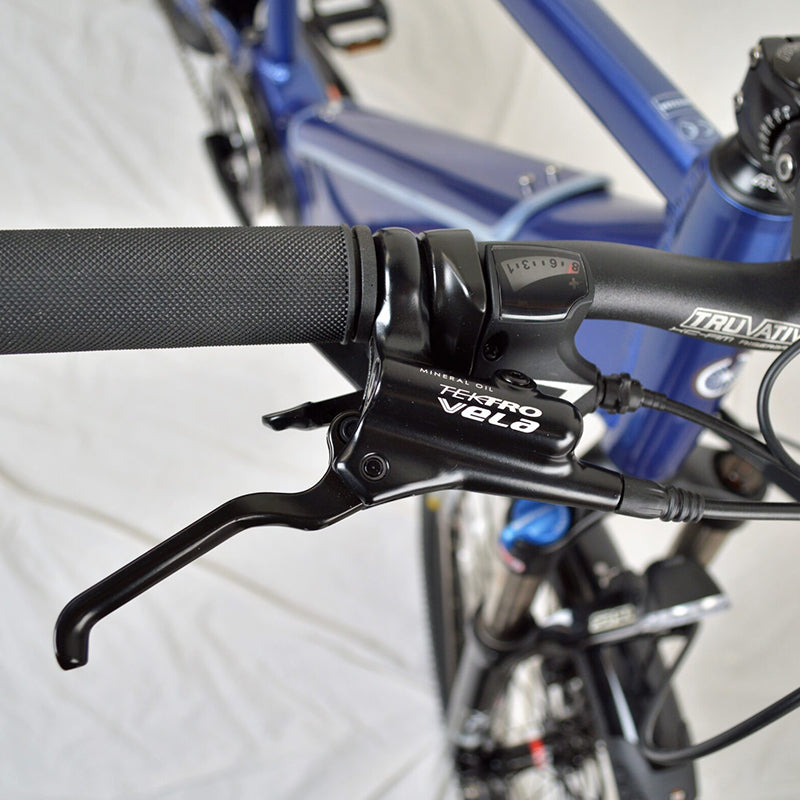

| BRAKES | Tektro T290 Vela Hydraulic with sensor |
| WHEELS | 27.5" Double Wall MTB Rims |
| HUBS | Quando r: 12×148 f: 15×110 thru axle sealed hubs |
| TIRES | 27.5×2.4in Schwalbe Smart Sam MTB tire |
| HANDLEBAR / STEM | MidRise Truvativ Bar and Truvativ Stem, Neco Headset, Dual Density Grips |
| FORKS | GTMRK 120mm Air with Hydraulic Lockout |
| SADDLE | Velo Comfort and Truvativ Seat Post |
| FRAME | 20" Large (68"-76") ; 18" Medium (63"-69") |
| DRIVE | Shimano Alvio Rear Derailleur, Shimano Thumb Shift, Shimano HG50 8-Speed Cassette |
| CRANKS AND PEDALS | Alloy 46T Crankset, Wellgo Aluminum Alloy Non-Slip Pedals |
| CHARGE SYSTEM | UL Listed Smart Charger with LED Status Display |
| CONTROLLER | 48V Fully Potted with Power Gauge Function |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 60 miles (Rider weight, assist and terrain contingent) |

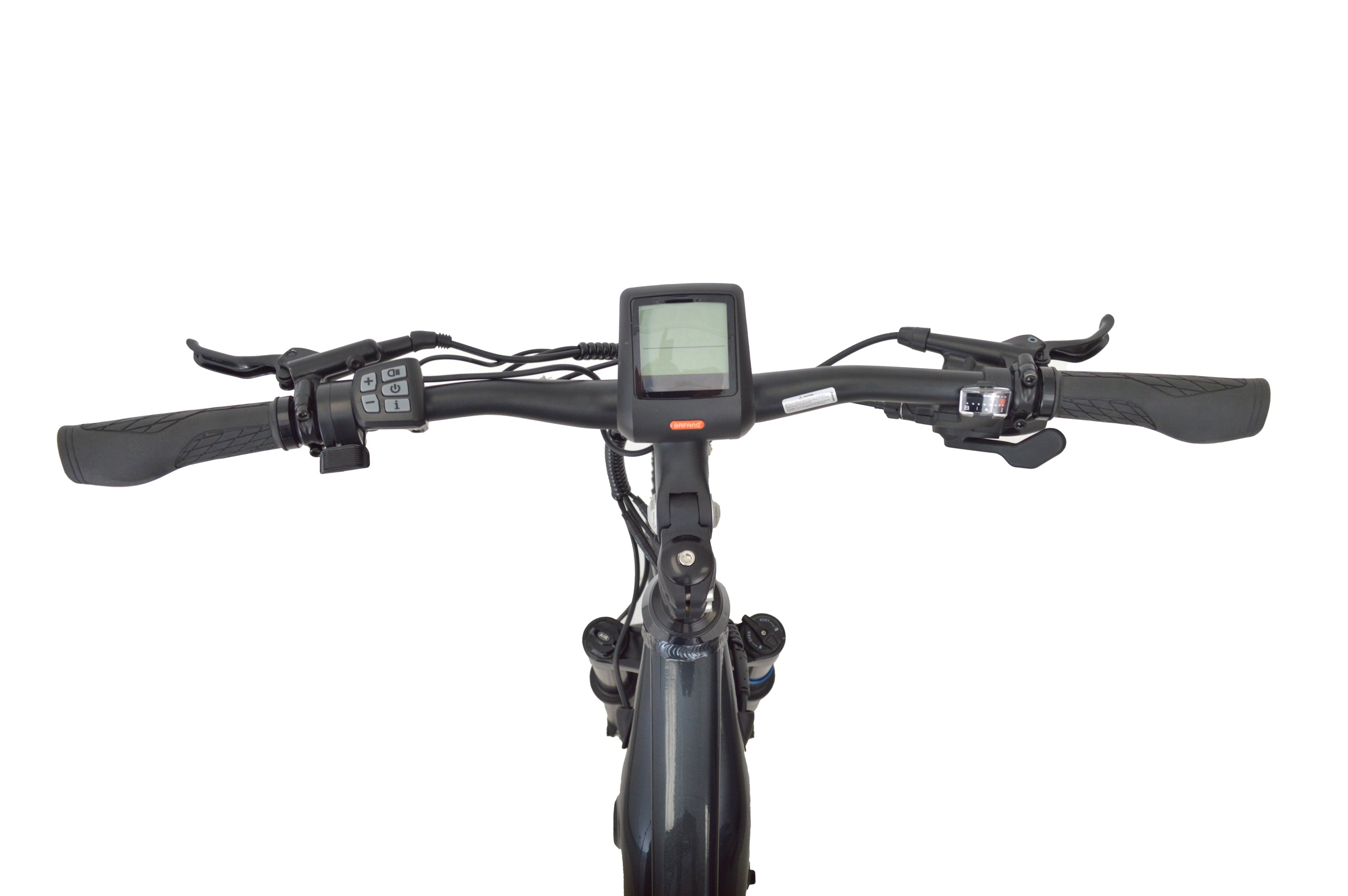

| USER CONTROLS | Center bar mounted backlight display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. Torque activated Pedal Assist System – No throttle. |
| NET WEIGHT | 53 lbs / 24 kg |
| ACCESSORIES | Polymer Rear and Front Fenders, Front (powered by battery-in-frame) and Rear LED Lighting (auxiliary) |
| Frame Size | (20") |
| COLOR | Black (with black rims), Graphite (with black rims), Volton Blue, White (with white rims) |
|---|---|
| MOTOR | Bafang MAX motor with torque sensing control |
| BATTERY | Samsung 48v14.5ah |
| BRAKES | Tektro T290 Vela Hydraulic with sensor |
| WHEELS | 27.5" Double Wall MTB Rims |
| HUBS | Quando r: 12×148 f: 15×110 thru axle sealed hubs |
| TIRES | 27.5×2.4in Schwalbe Smart Sam MTB tire |
| HANDLEBAR / STEM | MidRise Truvativ Bar and Truvativ Stem, Neco Headset, Dual Density Grips |
| FORKS | GTMRK 120mm Air with Hydraulic Lockout |
| SADDLE | Velo Comfort and Truvativ Seat Post |
| FRAME | 20" Large (68"-76") ; 18" Medium (63"-69") |
| DRIVE | Shimano Alvio Rear Derailleur, Shimano Thumb Shift, Shimano HG50 8-Speed Cassette |
| CRANKS AND PEDALS | Alloy 46T Crankset, Wellgo Aluminum Alloy Non-Slip Pedals |
| CHARGE SYSTEM | UL Listed Smart Charger with LED Status Display |
| CONTROLLER | 48V Fully Potted with Power Gauge Function |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 60 miles (Rider weight, assist and terrain contingent) |
| USER CONTROLS | Center bar mounted backlight display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. Torque activated Pedal Assist System – No throttle. |
| NET WEIGHT | 53 lbs / 24 kg |
| ACCESSORIES | Polymer Rear and Front Fenders, Front (powered by battery-in-frame) and Rear LED Lighting (auxiliary) |
| Frame Size | (20") |
