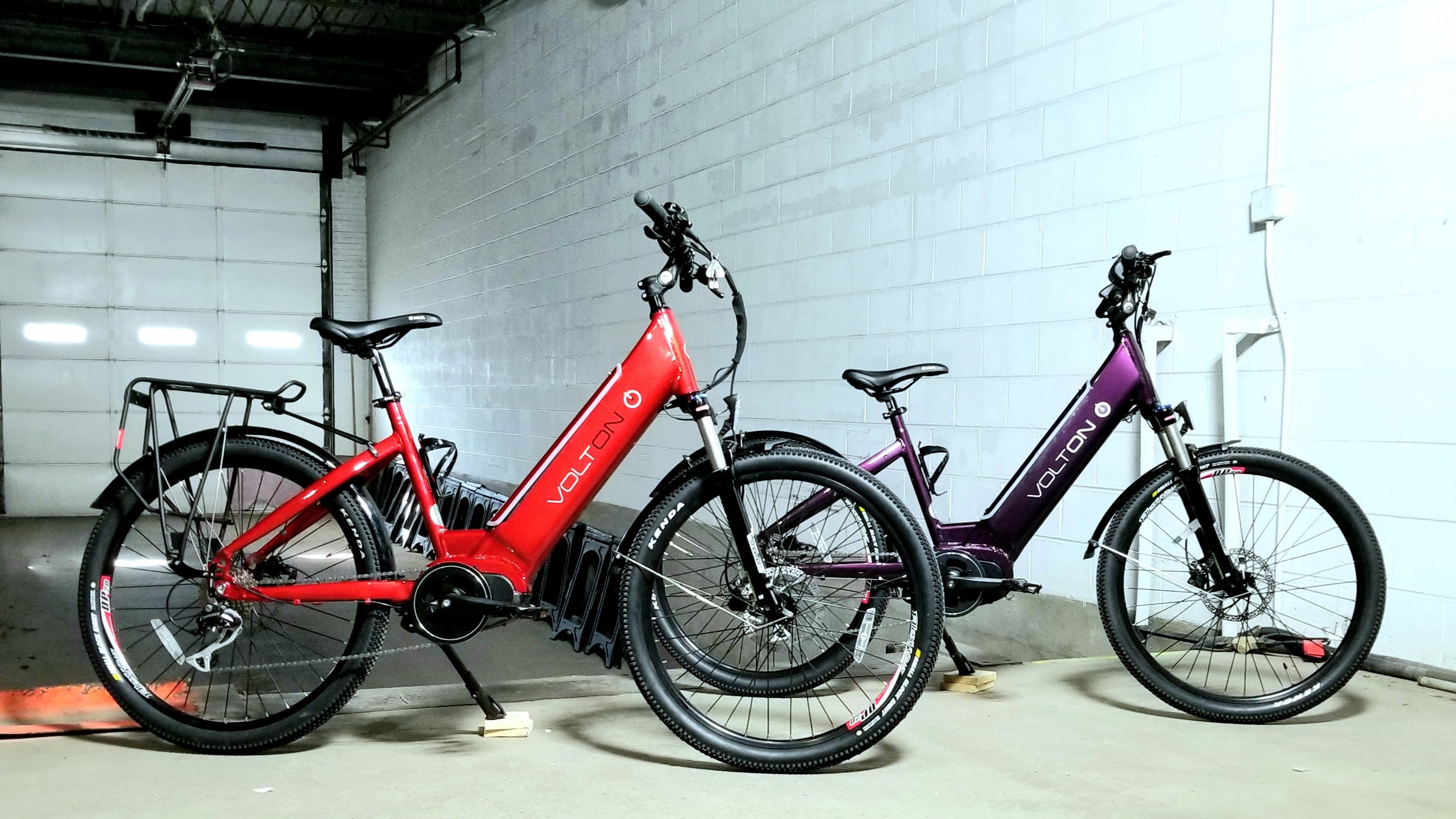

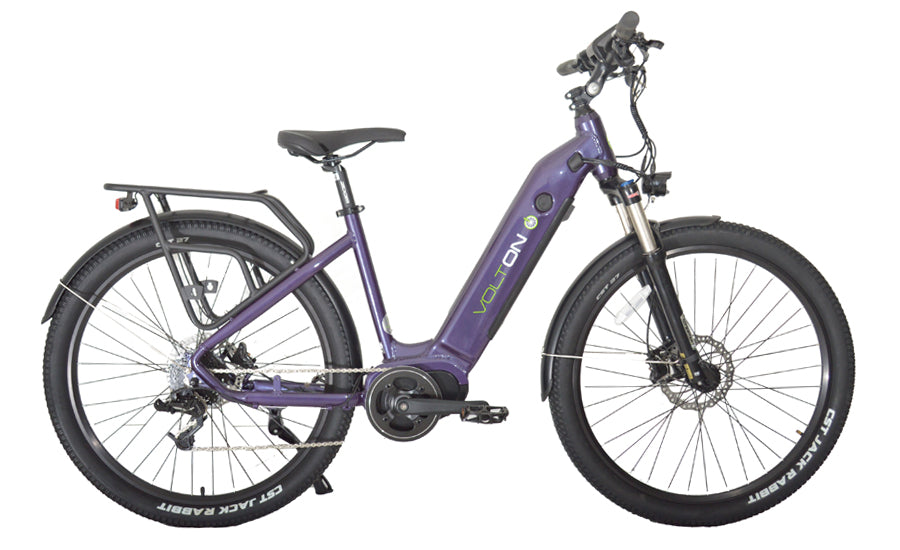

Action LS Mid Drive
Featuring torque sensing pedal assist mid drive motor with throttle up to 864 watts of motor output, paired with our in-frame 48v Samsung battery for centered weight distribution, better balance and increased electric drive efficiency for a longer, more comfortable ride.
Streamlined Design with Low Center of Gravity
A comfortable ride and superior handling comes from proper weight placement. Strong, light wheels, frame integrated motor and battery are mounted under the rider giving you comfort and unmatched handling at cruising speed and around turns.
Ultra- smooth torque sensing motor activation and throttle
The 5-level assist system detects your forces against the pedal and multiples your power through the torque sensing mid drive motor. Safer and responsive underfoot, each rider gets to find their perfect pedal and power output with the mid motor system. There is no need to control a throttle, all electronics function at the push of a button. Riders can simply pedal, concentrate and enjoy the ride while sensing the torque sensing performance. The Action series feature working thumb throttles operable between 8-20mph.
Samsung battery cells rated for high power and long life
The Volton Action demands powerful advanced lithium-ion chemistry to go fast and power through any condition. With an on-board battery management system (BMS) for superior performance and long life, these lightweight, high capacity battery packs, BMS and chargers ensure a long lasting and reliable source of power.
Bright integrated LED headlights
Light up your path and let others know you are there so you can safely ride at night.
Frame
6160 aluminum alloy is used exclusively on Volton Bicycles. A tough, durable, light alloy, 6160 aluminum alloy delivers fantastic, reliable performance that lasts for thousands of miles. It is, by far, the ultimate aluminum tubing that stands up to the power delivered by the Action model series.
| Better Parts = Better Ride | On the Road and On the Trail Performance |
 |
 |
| Powerful Geared Motor | Battery Integrated Frame |
 |
 |
| Fun for the Family | Quality Electronic Power Guaranteed |
 |
 |
| COLOR | Black (with black rims), Metallic Dark Red (with black rims), Metallic Purple (black components), White (with white rims) |
|---|---|
| MOTOR | Bafang MAX motor with torque sensing control |
| BATTERY | Panasonic 48v10.5ah Lithium Ion |

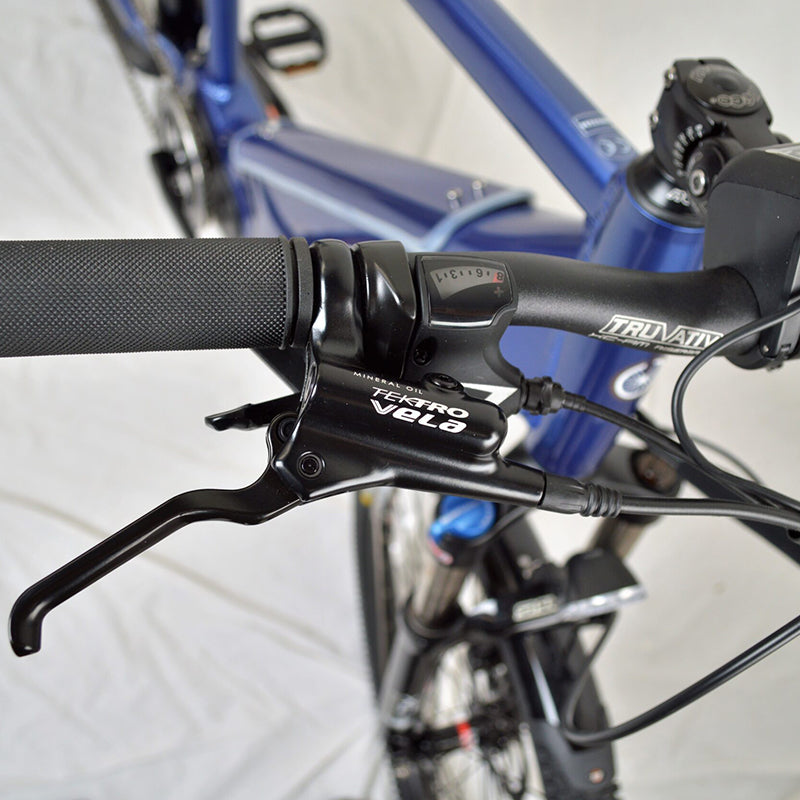

| BRAKES | Tektro Vela Hydraulic (180mm rotors) |

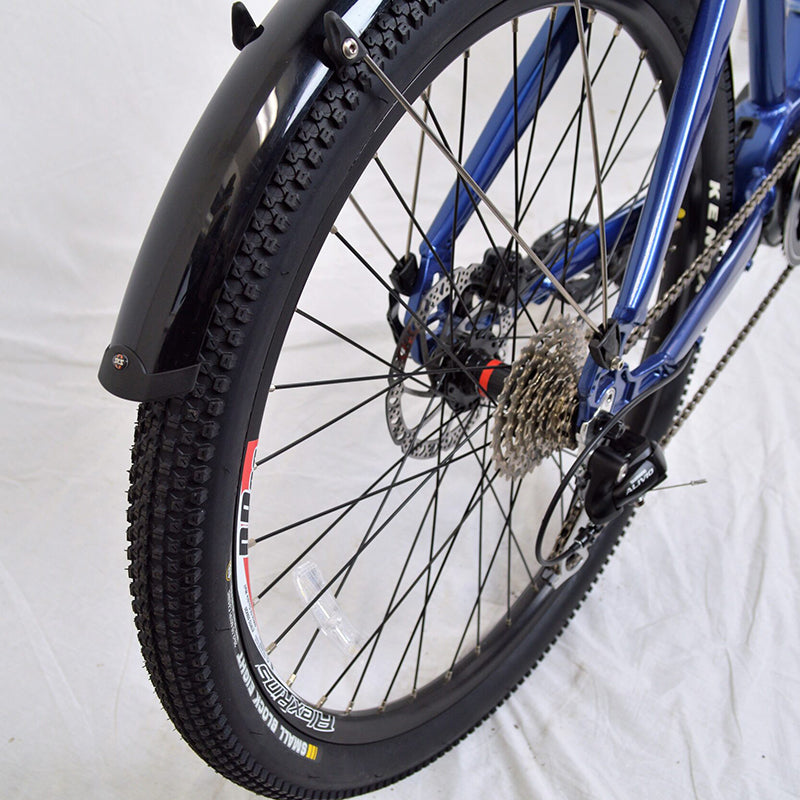

| WHEELS | Alex Rims DP20 XC Rims with Stainless Steel Spokes |
| HUBS | Novatec Alloy MTB (Disc Compatible) |
| TIRES | Kenda KRAD Tires 26″ x 2.3″, Kenda Smallblock Eight (26×2.35") |
| HANDLEBAR / STEM | Mid-Rise Truvative Bar and Adjustable Stem, Neco Headset, Velo Soft Grips |

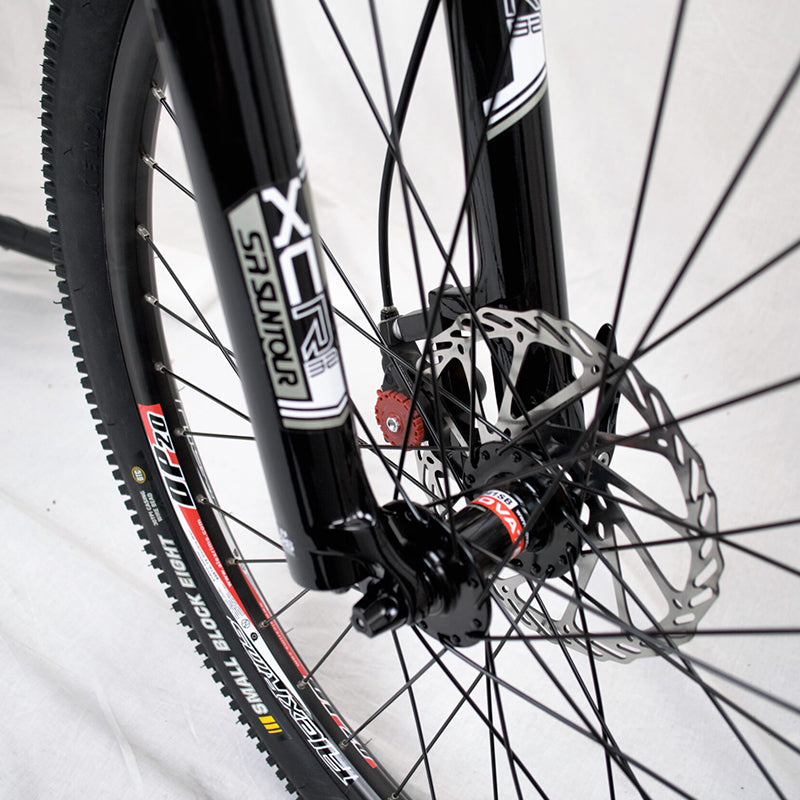

| FORKS | SR Suntour XCR (Disc Compatible) |
| SADDLE | Velo Comfort and Truvativ Seat Post |
| FRAME | T6 6160 Aluminum Alloy |
| DRIVE | Shimano Alvio Rear Derailleur, Shimano Thumb Shift,Shimano HG50 8-speed cassettee |
| CRANKS AND PEDALS | Alloy chainring and crank set, Wellgo sealed bearing platform pedals |
| CHARGE SYSTEM | UL Listed Smart Charger with LED Status Display |
| CONTROLLER | 48v18amp pully potted |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 44 miles with Pedal Assist. Add an Optional Second Battery Pack to Double the Range |

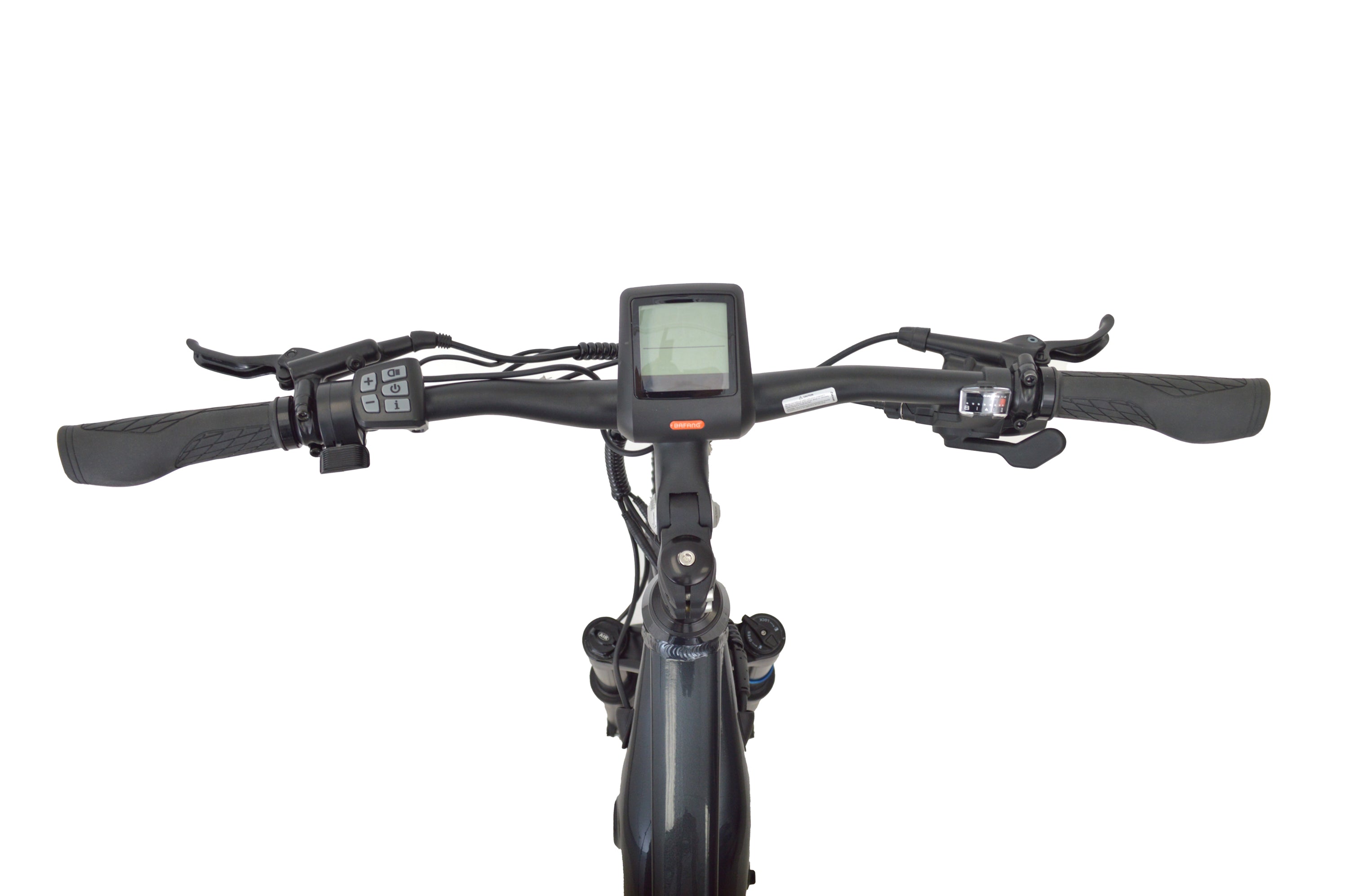

| USER CONTROLS | Center bar mounted backlight display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. Torque activated Pedal Assist System – No throttle. |
| NET WEIGHT | 53 lbs / 24 kg |
| ACCESSORIES | Polymer Rear and Front Fenders, Front (powered by battery-in-frame) and Rear LED Lighting (auxiliary) |
| COLOR | Black (with black rims), Metallic Dark Red (with black rims), Metallic Purple (black components), White (with white rims) |
|---|---|
| MOTOR | Bafang M400 MAX motor with torque sensing control |
| BATTERY | Panasonic 48v14ah Lithium Ion |
| BRAKES | Tektro Vela Hydraulic (180mm rotors) |
| WHEELS | Alex Rims DP20 XC Rims with Stainless Steel Spokes |
| HUBS | Novatec Alloy MTB (Disc Compatible) |
| TIRES | CSt Jack Rabbit 27.5″x2.3″ |
| HANDLEBAR / STEM | Mid-Rise Promax Bar and Adjustable Stem, Neco Headset, Velo Soft Grips |
| FORKS | SR Suntour XCR 100mm (Disc Compatible) |
| SADDLE | Velo Gel Comfort and Promax Seat Post |
| FRAME | T6 6160 Aluminum Alloy |
| DRIVE | SRAM X5 Rear Derailleur, Shimano Thumb Shift,Shimano HG50 9-speed cassettee |
| CRANKS AND PEDALS | Alloy chainring and crank set, Wellgo sealed bearing platform pedals |
| CHARGE SYSTEM | UL Listed Smart Charger with LED Status Display |
| CONTROLLER | 48v18amp potted |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 44 miles with Pedal Assist. Add an Optional Second Battery Pack to Double the Range |
| USER CONTROLS | Center bar mounted backlight display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. Torque activated Pedal Assist System, Thumb Throttle (6mph-20mph). |
| NET WEIGHT | 53 lbs |
| ACCESSORIES | Polymer Rear and Front Fenders, Front (powered by battery-in-frame) and Rear LED Lighting (auxiliary) |
