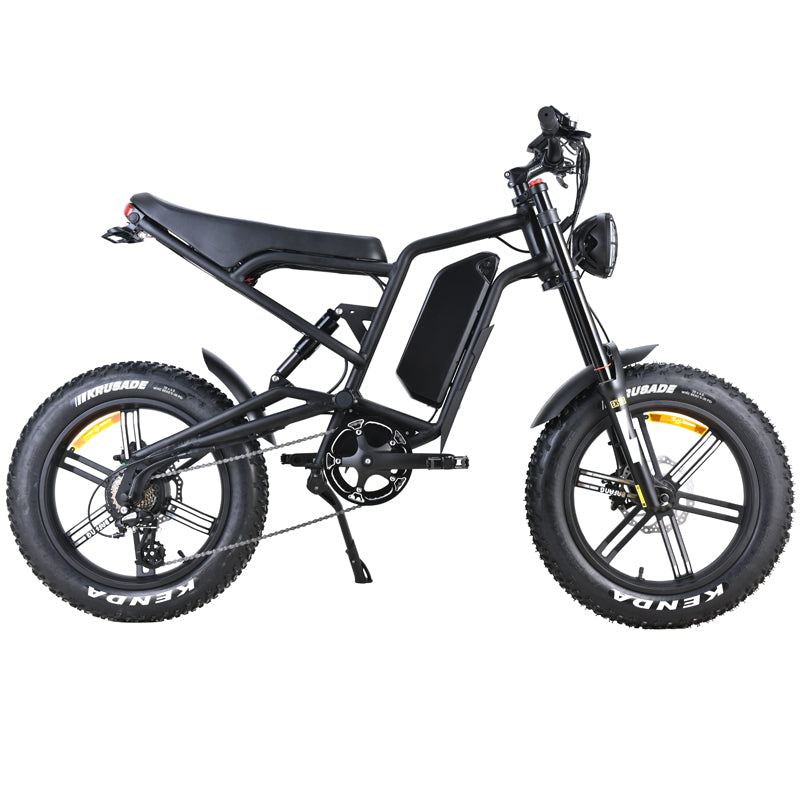

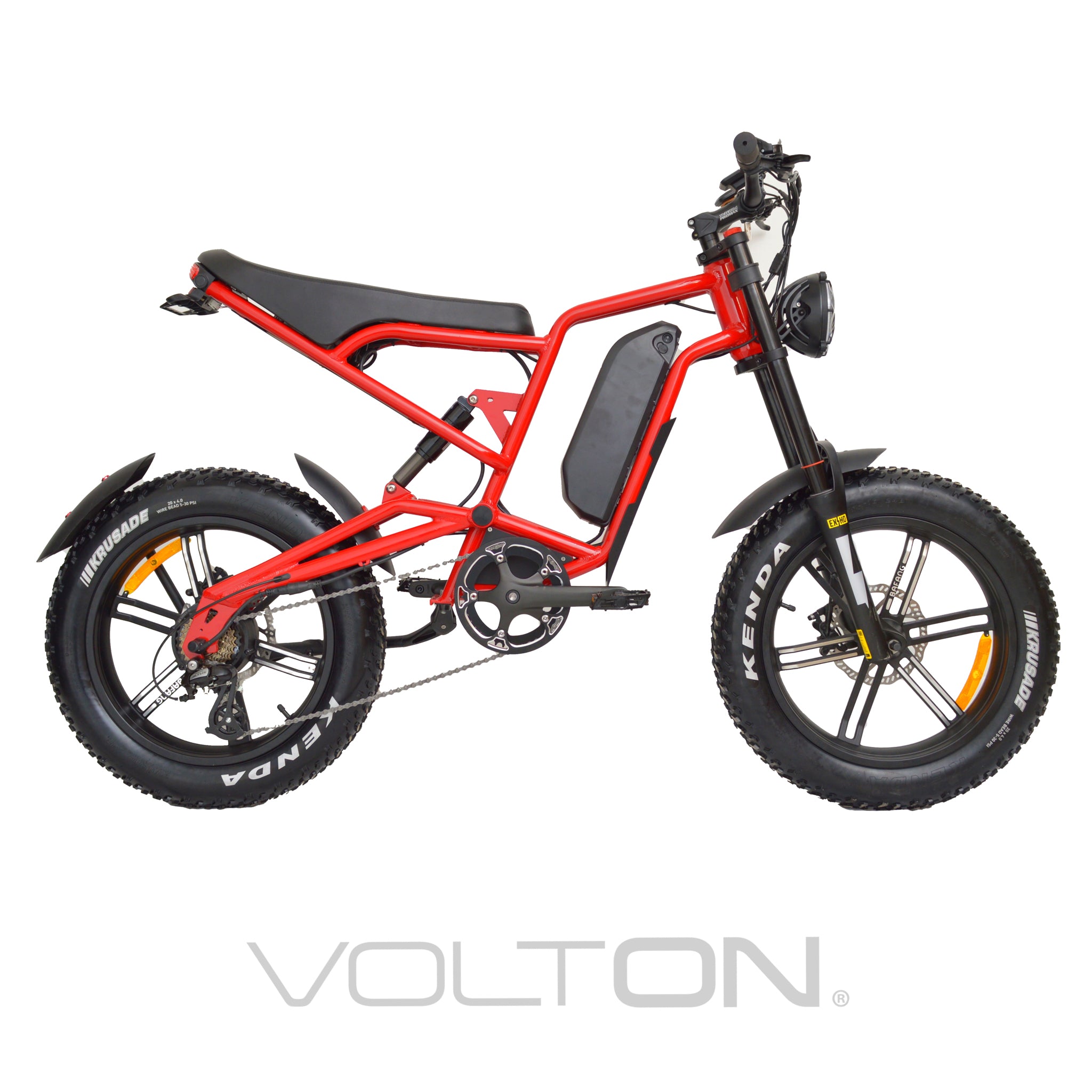

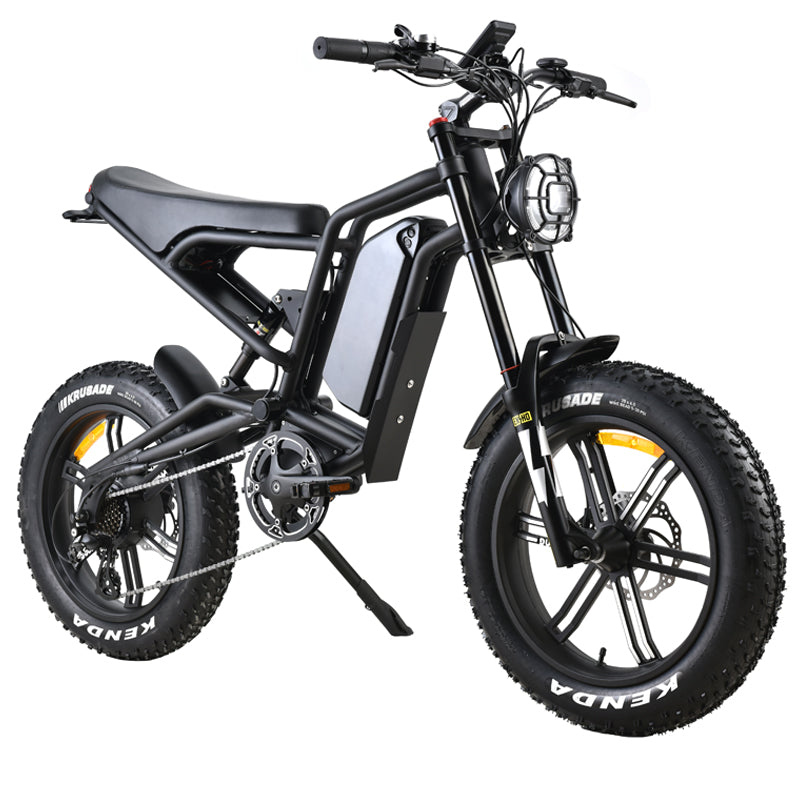

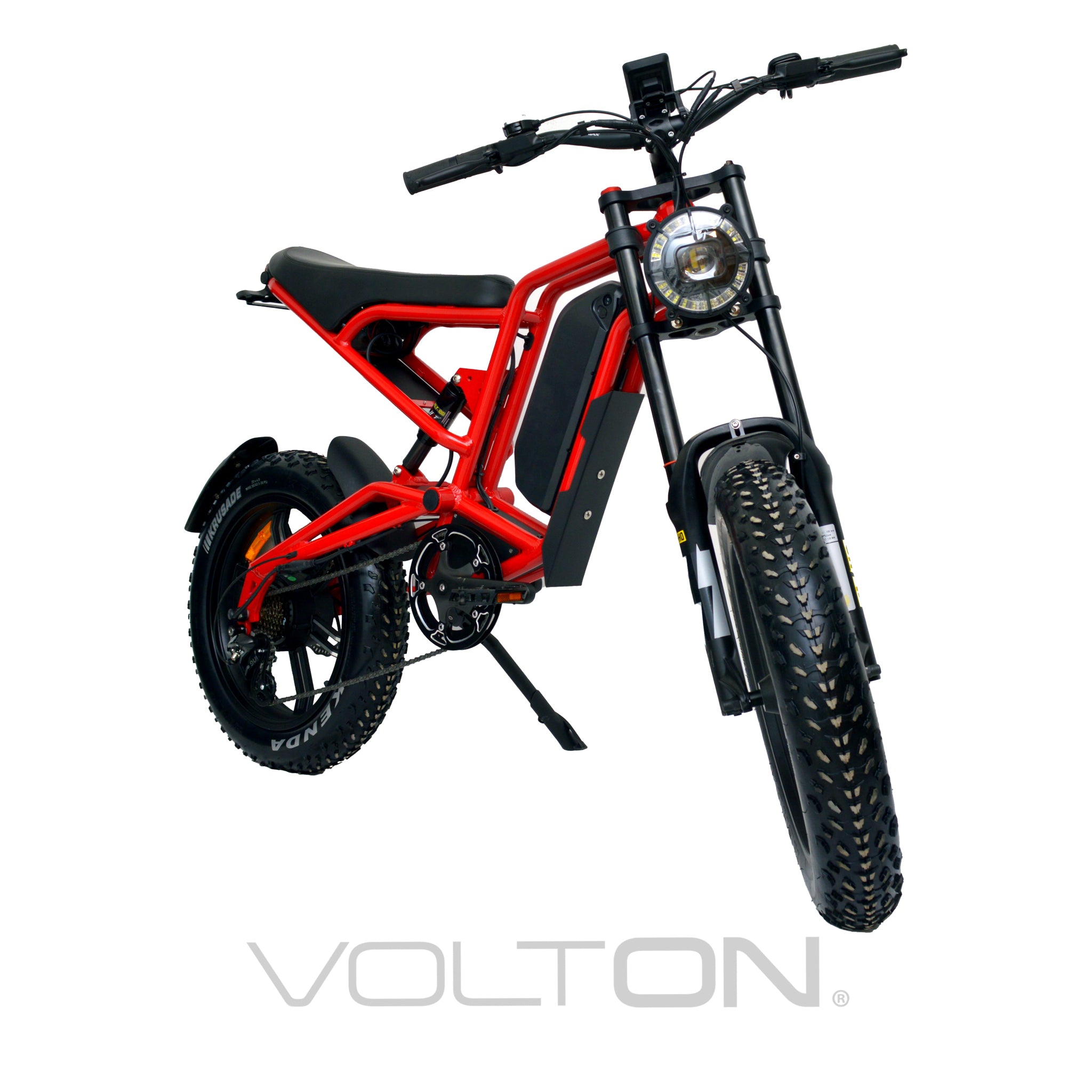

DEMON
Best in Class Dual Suspension Street eBike.
Powerful 500w Motor System | High Strength Cast Wheels | Triple Tree Suspension Fork | Hydraulic Brakes | 900 Lumen Light Kit & Functional Brake Light.
48v17.5ah 840wh Range: 25-55m | 5 Level Pedal Assist with Twist Throttle, Color Display | Bafang Cast Aluminum Wheel set - 500/1200w nominal/peak
Pallet ships in 2-3 days.
Better Parts = Better Ride, More Power & Less Maintenance
A powerful Bafang 500w with up 1200 watts of motor output integrated in high strength cast wheels made to last.
Volton cadence assist is smooth and comfortable, with a refined acceleration controller riders prefer over the jerky and jumpy assist from the competition.
Full Voltage Range Throttle articulation makes this a proper street demon that gets up to speed whenever you need.
The Demon delivers stronger steering and suspension to ride with confidence.
Oversized trail-rated hydraulic brakes, triple tree 110mm air suspension with adjustable compression and rebound add stability through every turn.
The Demon - All Thriller, No Filler
900 Lumen Headlamp, Working Brake Lights, Powerful Hydraulic Brakes and Strong Steering and Wheels on Air Suspension.
Ride the Demon for headturning looks and reliable street and trail performance.
On the Road and On the Trail
Volton offers some of the best appointed low profile electric bikes on the market at affordable prices.
Enjoy a quality ride that is built to last - You know it's Volton Bicycles.
Volton's stands behind the quality of all Volton bikes with a 2 year parts warranty, and easy to contact, US based general support.
Since 2011, Volton delivers quality electric bike performance, and works with a nationwide network of mechanics for assembly and maintenance.
| FRAME | Large (19"), Small (17") |
|---|---|
| MOTOR | Ultra 1000w |
| COLOR | Graphite (with black rims) |
| BATTERY | Panasonic 48v14ah (GA, 3500mah) |
| BRAKES | Tektro E350 Hydraulic, Sensored |
| WHEELS | Alex Rims MD35 27.5" Double Wall MTB rims |
| HUBS | Quanta sealed hubs Front 110×15 Rear 148×12 through axle |
| TIRES | MAXXIS Chronicle 27.5"x3" |
| HANDLEBAR / STEM | Mid-Rise Truvativ Bar and Truvativ Stem, Neco Headset, Velo Soft Grips |
| FORKS | Rockshox Recon RL 140mm |
| SADDLE | 30.9mm Seatpost, Selle Royale Sport |
| DRIVE | Shimano 9 speed 11t-34t, Deore Rear Derailleur, Deore Shifter, |
| CRANKS AND PEDALS | Wellgo Aluminum Platform Pedals, Ultra Crankset |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 35 miles with Pedal Assist. Add a Second Battery Pack to Double the Range |
| USER CONTROLS | Center bar mounted backlight display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. Torque activated Pedal Assist System – No throttle., Ultra Motor – Center mounted Color Display with Power, Trip info, PAS Adjustment and Brightness, In-Frame charging, Removable Battery, 5 Level Torque Activated Pedal Assist and Thumb Throttle |
| NET WEIGHT | 61 ULTRA 57 MAX |
| FRAME | Medium/Large (19") |
|---|---|
| MOTOR | 48v500w, 1200w peak power |
| COLOR | Red, Black |
| BATTERY | 48v15ah |
| BRAKES | StarUnion PYD150 Hydraulic, Sensored |
| WHEELS | Bafang Cast Aluminum 20in |
| HUBS | sealed hubs Front 130×12 Rear 148×12 through axle |
| TIRES | Kenda Krusade 20x4" |
| HANDLEBAR / STEM | Mid-Rise Bar and Stem, Neco Headset, Velo Soft Grips |
| FORKS | Triple Tree with 100mm Air, Compression and Rebound Adjustment |
| SADDLE | Hgh density foam saddle |
| DRIVE | Shimano 8 speed 11t-34t, Acera Derailleur and Shifter |
| CRANKS AND PEDALS | Wellgo Aluminum Platform Pedals, Cast Aluminum Cranks |
| TOP SPEED | Up to 28mph assisted (Rider weight, rider input and terrain contigent) |
| RANGE | Up to 55 miles with Pedal Assist. Add a Second Battery Pack to Double the Range |
| USER CONTROLS | Center bar mounted backlight color display with Power, Battery Gauge, 5 level PAS, Headlight control. In frame charging jack and Removable Battery pack. 5 Level Cadence Activated Pedal Assist and Twist Throttle |
| NET WEIGHT | 85 |
